Phenolic Epoxy Fiberglass Mat Laminate Sheet For Electrical Insulation

Model Number : 3240

Place of Origin : China

MOQ : 1000kgs

Price : basing on size and quantity

Payment Terms : T/T

Supply Ability : 200000kgs per month

Delivery Time : 30 working days

Packaging Details : pallet

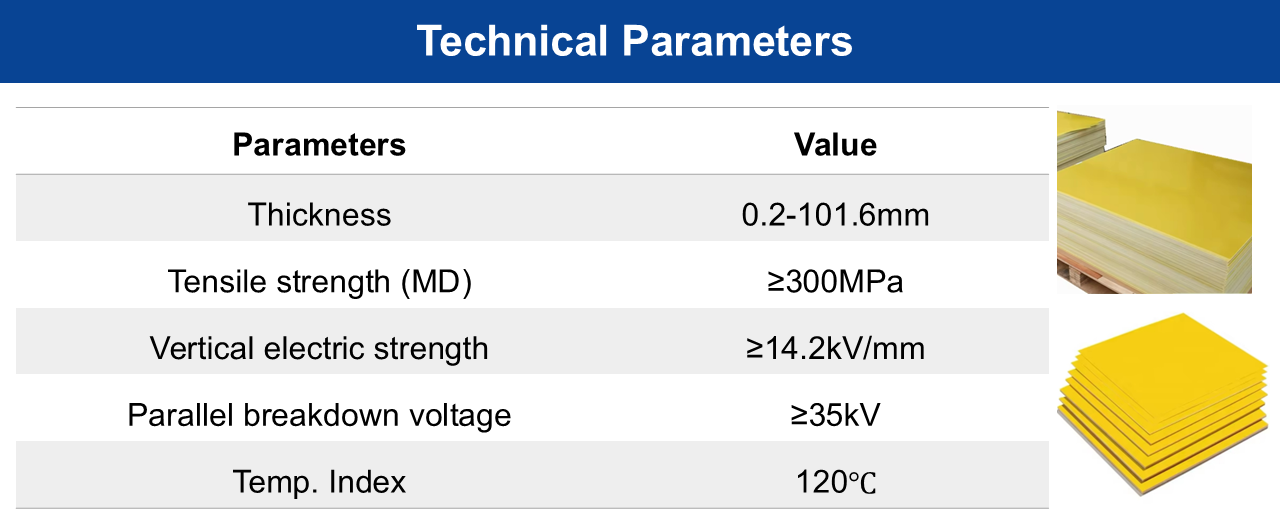

Thickness : 0.2-101.6mm

Density : 1.8-2.0 g/cm3

Water absorption Rate : ≤0.5%

Tensile strength(MD) : ≥300MPa

Compressive strength : ≥350MPa

Vertical electric strength : ≥14.2kV/mm

Temp. Index : 120℃

Flammability : HB

Parallel breakdown voltage : ≥35kV

Size : 102 X 202cm / 102 X 122cm / 122 X 204cm / 122 X 244cm
